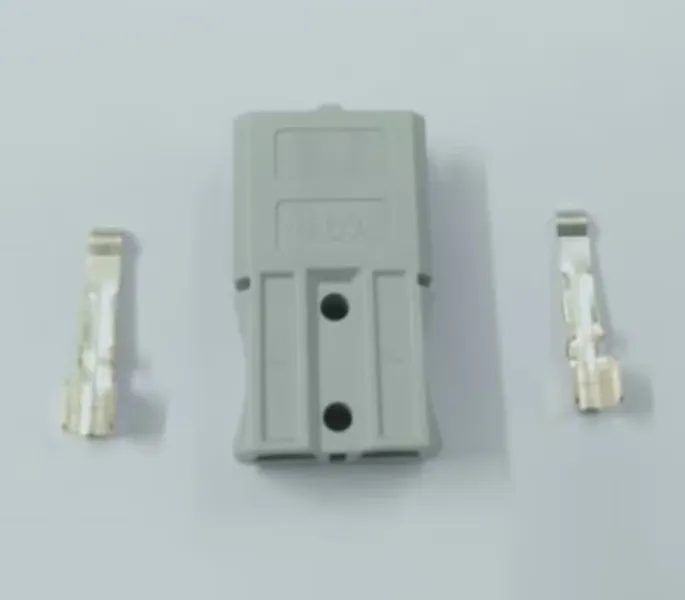

Choosing a Connector SB-40A for an electrical or battery application requires attention to more than connector appearance. A common purchasing mistake is assuming that connectors from similar-looking product families can be selected interchangeably without checking contacts, wire size or electrical requirements.
For manufacturers, repair businesses and battery equipment suppliers in Delhi, avoiding a few basic selection mistakes can improve both assembly quality and procurement accuracy.
Mistake 1: Selecting by Appearance Alone
Connector housings may look similar while differing in dimensions, terminals or mating arrangements.
When purchasing a replacement, verify the exact connector specification rather than relying only on photographs. If the original specification is unavailable, physical measurements and application details can help narrow down the requirement.
Mistake 2: Ignoring Cable Size
A connector cannot be evaluated independently of the cable attached to it.
The terminal needs to accommodate the conductor correctly. A mismatch between wire size and contact can result in poor crimping or an unreliable mechanical connection.
Always provide wire gauge or conductor cross-sectional area when sourcing terminals.
Mistake 3: Looking Only at Maximum Current
Connector suitability depends on actual operating conditions.
Continuous current, peak current, ambient temperature, wire size and termination quality all matter. Selecting solely from a headline current figure can overlook the way the connector will actually be used.
Mistake 4: Poor Termination
Even the correct connector can perform poorly when terminals are improperly crimped.
Loose strands, insufficient compression or damage to the conductor can affect the connection. Appropriate crimping methods and inspection should form part of the assembly process.
Mistake 5: Forgetting the Mating Side
A connector needs a compatible counterpart.
Before ordering, determine whether the requirement includes one housing, a complete pair, contacts or additional components. This simple check can prevent delays during assembly.
Mistake 6: Overlooking Physical Installation
Space limitations can matter in compact battery boxes, electrical enclosures and equipment.
Cable bend radius and the direction from which connectors are mated should be considered before finalising the component.
Delhi's battery, electronics and electric mobility markets involve both new manufacturing and replacement requirements. In either situation, connector selection should begin with the system specification.
Providing voltage, current, wire size, connector series and intended application to the supplier creates a much stronger basis for selection. It also reduces the risk of purchasing components that appear suitable initially but create difficulties during termination or installation.
