CONNECTOR SB-40AMP
Description

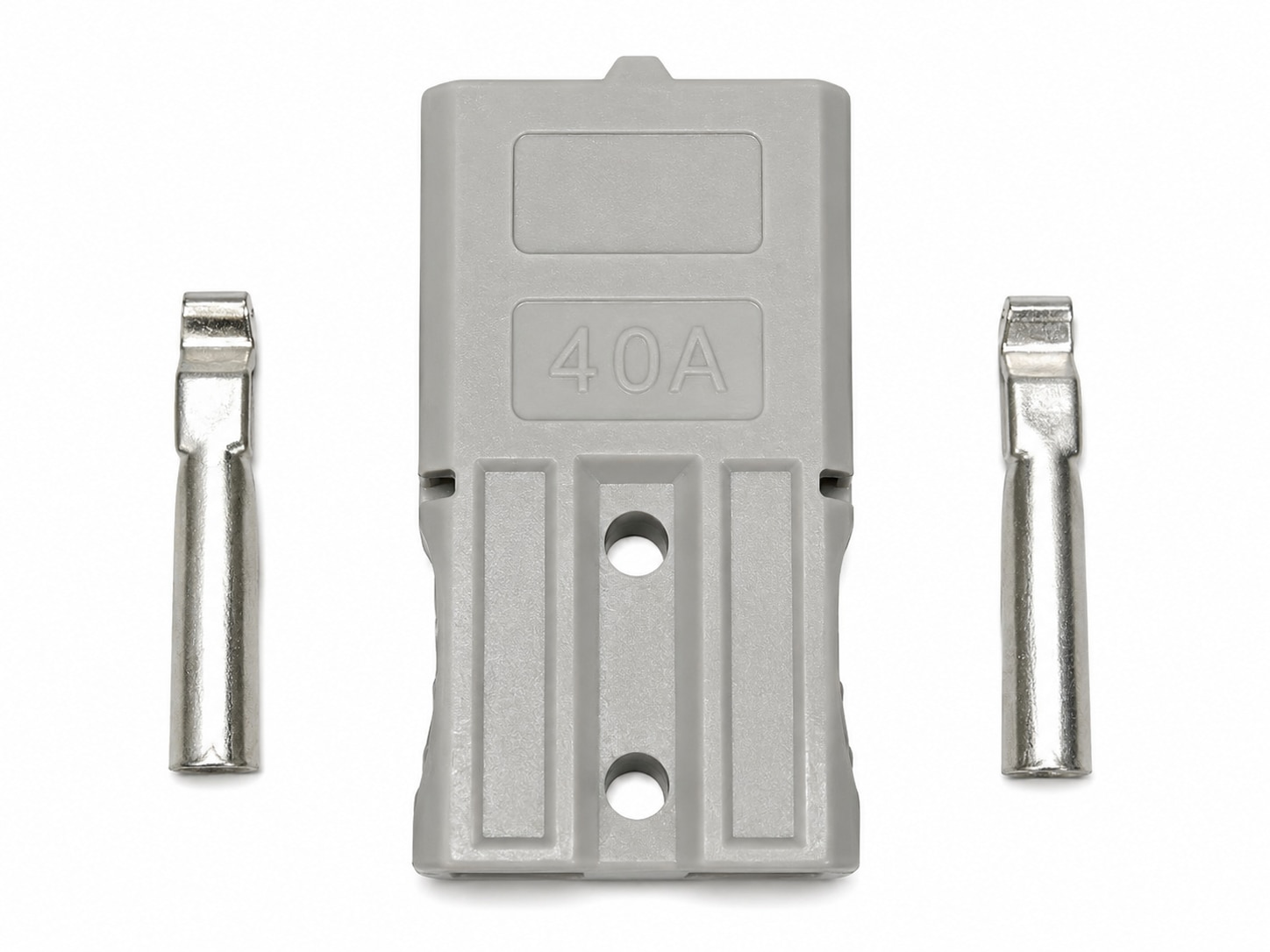

This is a 40 amp quick disconnect battery connector. These connectors are designed for high-current applications such as winches, battery chargers, solar panels, and electric vehicles.
Key Specifications:-
●Rated Current: Up to 40A continuous current.
●Rated Voltage: Up to 600V.
●Housing Material: Impact-resistant Polycarbonate (PC).
●Terminal Material: Silver-plated copper for high conductivity and minimal power loss.
●Design: Genderless (allows for versatile and easy connections).
●Wire Size Compatibility: Typically supports 10-14 AWG (some variants support up to 12 AWG silicone flexible wires)
Common Applications
●These connectors are widely used in high-current DC environments, including:
●Electric Vehicles: E-rickshaws, golf carts, and forklifts.
●Power Backup: UPS systems and inverters.
●Renewable Energy: Solar panels and wind generators.
●Marine & Automotive: Battery connections for boats and cars.
